High Voltage IP65 3 Phase Hybrid Solar Inverter 250V-600V 6kw 8kw 10kw MPPT On/Off Grid 5kw Solar Inverter

Brand Name : COENG

Model Number : TP6KH

Certification : CE, IEC

Place of Origin : Guangdong, China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20000piece/month

Delivery Time : 10-30working days

Packaging Details : Carton, pallet

Size : 560mm*580mm*218.3mm

Battery Voltage : 250V-600V

Input Voltage : 1000V

OEM : Accept OEM

Inverter Type : Hybrid Solar Inverter

Protection Degree : IP65

Gross Weight : 32kg

Contact Now

Product Features.



1.Maximum efficiency of 97.8% and battery efficiency of 97.0%



2.Maximum 15kW PVinput power, supporting continuous overload

3.Key components from international renowned brands

4.IP65 protection rating, ensuring adaptability to complex outdoor environment

5.Multiple built-in protections, with optional AFCl

6.Large MPPT current, compatible with high-power solar panels

MODEL
TP5KH
TP6KH
TP8KH
TP10KH
Nominal Battery Voltage
250VDC-600VDC
Mounting Method
Wall Bracket
Battery Type
Lithium-ion/Lead-acid
Nos.of MPPT
2
2
2
2
Nominal Grid Voltage
380V/400V/415V,3W+N+PE
Battery Voltage Range
120V-600V
120V-600V
120V-600V
120V-600V
Rated Grid Frequency
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
Transfer Time
<10ms (typical)
<10ms (typical)
<10ms (typical)
<10ms (typical)
Nominal AC Output Power
3000W
3600W
4600W
5000W
Protection Degree
IP65
IP65
IP65
IP65
Max.AC Output Apparent Power
5500VA
6600VA
8800VA
11000VA
Weight
32Kg
Dimensions (W*H*D)
560mm*580mm*218.3mm
Warranty
5 Years/10 Years (Optional)
Display
LED,LCD


High Voltage IP65 3 Phase Hybrid Solar Inverter 250V-600V 6kw 8kw 10kw MPPT On/Off Grid 5kw Solar InverterHigh Voltage IP65 3 Phase Hybrid Solar Inverter 250V-600V 6kw 8kw 10kw MPPT On/Off Grid 5kw Solar InverterHigh Voltage IP65 3 Phase Hybrid Solar Inverter 250V-600V 6kw 8kw 10kw MPPT On/Off Grid 5kw Solar InverterHigh Voltage IP65 3 Phase Hybrid Solar Inverter 250V-600V 6kw 8kw 10kw MPPT On/Off Grid 5kw Solar Inverter

High Voltage IP65 3 Phase Hybrid Solar Inverter 250V-600V 6kw 8kw 10kw MPPT On/Off Grid 5kw Solar Inverter

High Voltage IP65 3 Phase Hybrid Solar Inverter 250V-600V 6kw 8kw 10kw MPPT On/Off Grid 5kw Solar Inverter

Key Product Selling Points

  1. Grid Chaos Master

    • Ultra-wide voltage range (260–520V adjustable) – survives extreme grid fluctuations.

    • <10ms transfer time – seamless backup during outages (critical for unstable grids).

  2. Extreme Environment Resilience

    • IP65 rating – dust/waterproof for deserts, tropics, and coastal areas.

    • -25°C to 60°C operation – works in Sahara heat or Andean cold.

    • 4000m altitude support – ideal for mountainous regions.

  3. High Power + Battery Flexibility

    • 15kW PV input / 11.3kW battery discharge – supports large solar arrays & backup needs.

    • 120–600V battery voltage – works with lithium/lead-acid and future-proofs for high-voltage systems.

  4. Certification Dominance

    • Africa: NRS 097-2-1 (South Africa), VDE 4105.

    • LatAm: RD 1699 (Chile/Colombia), UNE 217002 (Mexico).

    • Asia: AS 4777.2 (SEA/Aus), G98/G99 (UK-influenced markets).

  5. No-Fuss Maintenance

    • Natural cooling – no fans to fail in dusty/sandy environments.

    • 10-year optional warranty – reduces long-term risk.

Regional Competitive Edge

Region Why It Wins Top Markets
Africa ▶️ Handles 50% voltage drops (e.g., Nigeria’s 100V swings).
▶️ IP65 resists Sahel dust & monsoons.
▶️ NRS certification for South Africa.		 South Africa, Nigeria, Kenya
Southeast Asia ▶️ Typhoon-proof surge protection (Type II/III).
▶️ 50Hz/60Hz flexibility for rural grids.
▶️ High humidity tolerance (0–100% RH).		 Philippines, Indonesia, Vietnam
Middle East ▶️ 60°C desert operation.
▶️ Sand/dust immunity (IP65).
▶️ 15kVA surge starts AC units during outages.		 Saudi Arabia, UAE, Jordan
Latin America ▶️ RD 1699 compliance for Chile/Colombia.
▶️ 4000m altitude rating (Andes).
▶️ Handles voltage swings in favelas/rural areas.		 Chile, Colombia, Brazil

Why Beats Competitors

Feature TP Series Advantage Regional Impact
Voltage Range 260–520V (vs. standard 180–300V) Powers through brownouts (Africa/LatAm).
Battery Voltage 120–600V (vs. 40–60V low-voltage systems) Future-proof for high-voltage batteries.
Cooling Fanless natural cooling Zero maintenance in deserts/dust belts.
Certifications 10+ global grid codes (AS4777.2, RD1699, VDE4105) Faster market entry & trust.

Product Tags:

IP65 Solar Hybrid Inverter



On/Off Grid Solar Hybrid Inverter



High Voltage Solar Hybrid Inverter


Buy cheap High Voltage IP65 3 Phase Hybrid Solar Inverter 250V-600V 6kw 8kw 10kw MPPT On/Off Grid 5kw Solar Inverter product

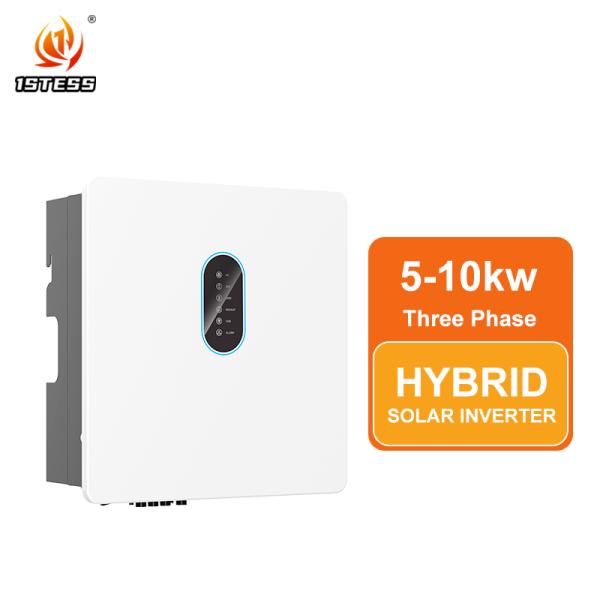

High Voltage IP65 3 Phase Hybrid Solar Inverter 250V-600V 6kw 8kw 10kw MPPT On/Off Grid 5kw Solar Inverter Images
